USD152.0-7inch RK3568 Industrial Tablet with Rich Input and Output Communication Interface

Model NO. : HR70R ,  RK3568, Input and Output Communication  Interface,VESA rear shell

7inch RK3568 Industrial Tablet with Rich  Input and Output Communication  Interface

Specifications:

1. CPU processor: RK3568 quad-core 64-bit Cortex-A55, with a maximum main frequency of 2.0GHz;

2.  Operating System: Ubuntu18.04 version,Linux4.19.206 or Android 11

3.  Display screen and touch screen: 7-inch multi-touch capacitive screen, 1024*600 pixels, brightness 300cd/m²;

4.  Memory & Storage: 4GB RAM  +32GB ROM;

5.  Wireless Network: WIFI: 802.11a/b/g/n 2.4Ghz single-band WIFI, BT5.2;

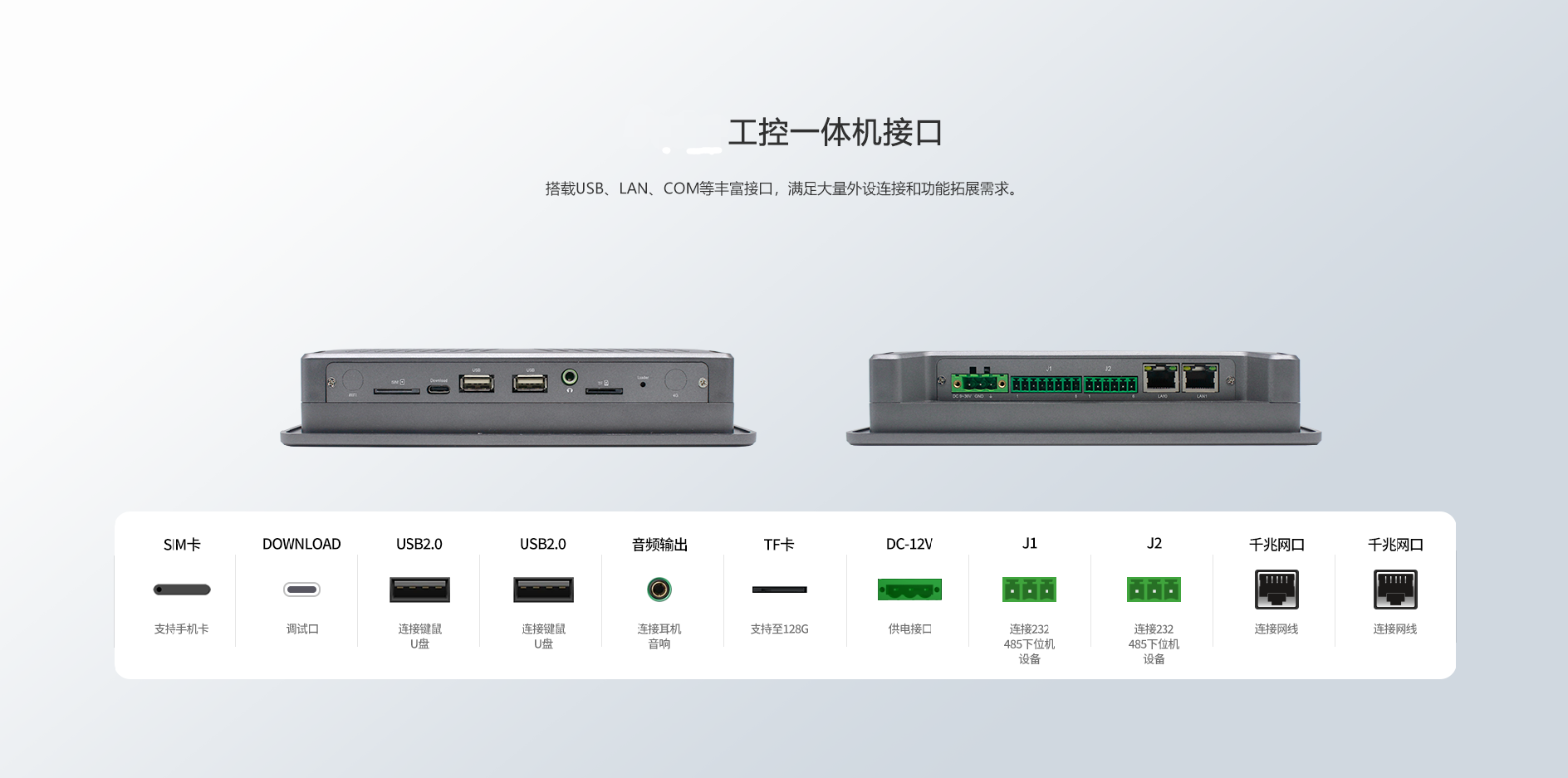

6.  Input and output interfaces: 2*RJ45, 2*USB2.0 female ports, 1*download interface, 1*loader interface, 1*line_out audio output interface;

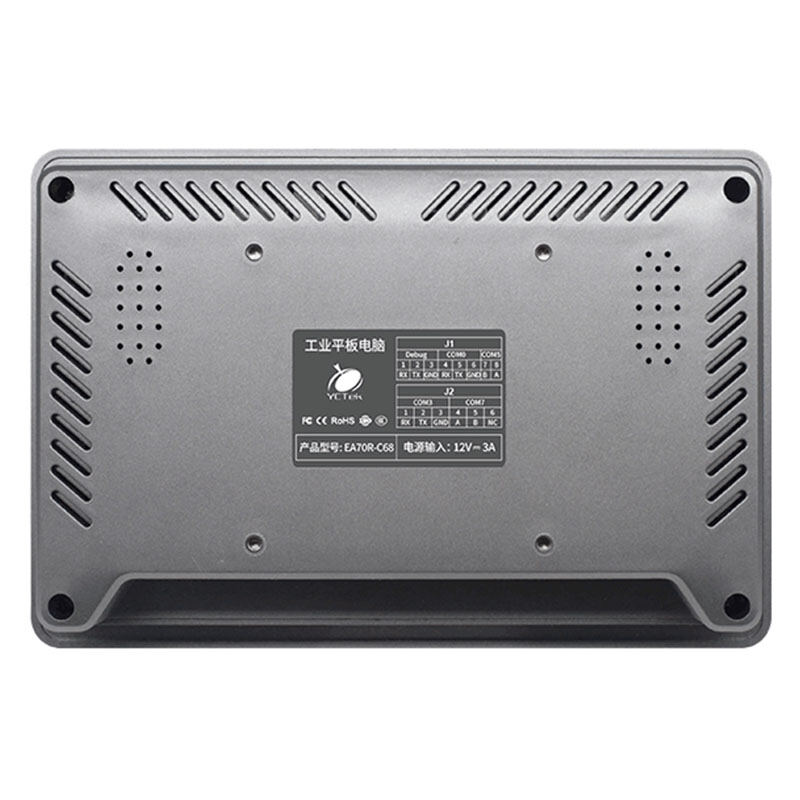

7.  Communication interface: 1x8-pin green segment (including 2 channels of 3-wire RS232 interface, 1 channel of RS485  interface, among which 1 RS232 is the debugging serial port, 1x6-pin green segment (including 1 channel of 3-wire RS232 interface, 1 channel of RS485 interface)

8.  Power supply: 9-36V wide voltage input, 3-pin 5.08-pitch green power terminal socket multiplexing;

9. VESA rear shell: 75*75 mm;

10.  Product bare machine size: 207*138*41mm;

Pictures:
